CAPACITOR SERIES

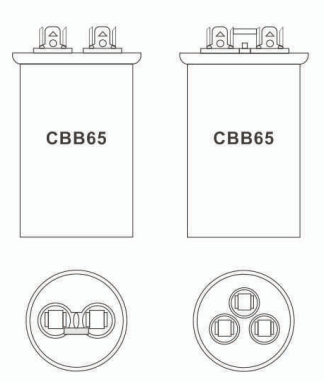

CBB65
Motor run capacitor
For motor run applications. Confirm capacitance, voltage, terminals and dimensions against your equipment requirements.
Inquire about this series ↗Share capacitance, voltage and application for a useful response.
01 / SPECIFICATIONS
Technical specifications
| Parameter | Specification |
|---|---|
| Operating temperature | -25-+85℃ |
| Rated voltage | 250V-500V |
| Capacitance range | 3-100μF |
| Capacitance tolerance | ±5% |
| Insulation resistance | T-T≥3000MΩ.μf T-C≥2000MΩ.μf |
| Dissipation factor | tanσ≤0.002(1000Hz) |
| Endurance voltage between terminals | 2Un2S |
| Lead head and shell withstand voltage | 2000V10S |
Features
- Sealed pure-aluminum housing.
- Built-in explosion-proof device.
- For applications including air conditioners, refrigerators, motors and lighting.
02 / MODELS & FORM FACTORS
Models & form factors
Contact us to confirm available models, terminals and mounting options.
