CAPACITOR SERIES
CBB60
Motor run capacitor
For water pump and motor run applications. Available housings and specifications are subject to confirmed product documentation.
Inquire about this series ↗Share capacitance, voltage and application for a useful response.
01 / SPECIFICATIONS
Technical specifications
| Parameter | Specification |
|---|---|
| Operating temperature | -25-+85℃ |
| Rated voltage | 110V-630V |
| Capacitance range | 3-80μF |
| Capacitance tolerance | ±5% ±10% |
| Insulation resistance | T-T≥3000MΩ.μf T-C≥2000MΩ.μf |
| Dissipation factor | tanσ≤0.002(1000Hz) |
| Endurance voltage between terminals | 2Un2S |
| Lead head and shell withstand voltage | 2000V10S |
Features
- Round flame-retardant plastic housing with a fully epoxy-sealed structure.
- Low dissipation, good self-healing properties and resistance to surge currents.
- Multiple housing styles for single-phase motor applications including washing machines, motors and water pumps.

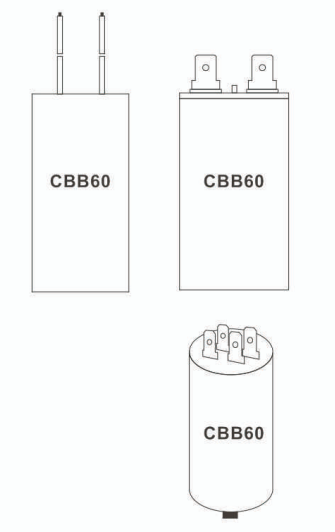

02 / MODELS & FORM FACTORS
Models & form factors
Contact us to confirm available models, terminals and mounting options.
