CAPACITOR SERIES
CBB61
Fan & motor run capacitor
For fan and motor run applications. Share the terminal arrangement, available space and required electrical specifications.
Inquire about this series ↗Share capacitance, voltage and application for a useful response.
01 / SPECIFICATIONS
Technical specifications
| Parameter | Specification |
|---|---|
| Operating temperature | -40-+85℃ |
| Rated voltage | 150V-500V |
| Capacitance range | 1-30uF |
| Capacitance tolerance | ±5% |
| Insulation resistance | T-T≥3000MΩ.μf T-C≥1000MΩ.μf |
| Dissipation factor | tanσ≤0.002(1000Hz) |
| Endurance voltage between terminals | 2Un2S |
| Lead head and shell withstand voltage | 2000V10S |
Features
- Typically a rectangular flame-retardant plastic housing with a fully epoxy-sealed structure.
- Stable electrical properties and good self-healing performance.
- For starting and running applications in washing machines and fractional-horsepower motors.
02 / MODELS & FORM FACTORS

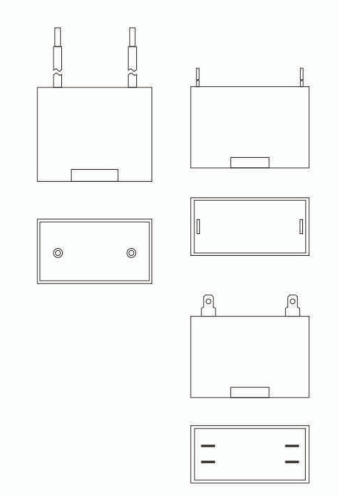

Models & form factors
Contact us to confirm available models, terminals and mounting options.
